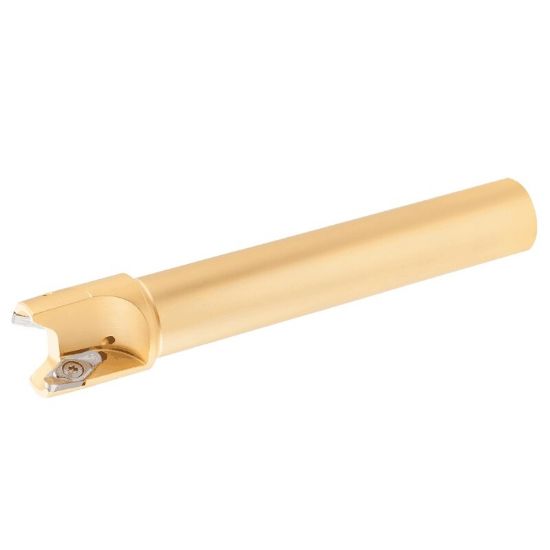

Picture of ISCAR HSM90S EAL-D150-2-C125-14 Milling Cutter 90.0° 1.500 Diameter Round 1.250 9.000 OAL 2 Flute

ISCAR HSM90S EAL-D150-2-C125-14 Milling Cutter 90.0° 1.500 Diameter Round 1.250 9.000 OAL 2 Flute

ANSI: HSM90S EAL-D150-2-C125-14

ISO: HSM90S EAL-D150-2-C125-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106433
Delivery date: 3-5 days
$709.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.5310
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 9.0000 228.60MM
Flutes/Inserts 2
Cut Dia Min 1.5000 38.10MM - 1-1/2
Insert Size Ic 14
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Max Ramp Angle 10.00°
Fasteners & Connectors
Insert Screw 7006097
