  • ISCAR HSM90S EAL-D125-2-C125-14 Milling Cutter 90.0° 1.250 Diameter Face Mill 1.250 8.000 OAL 2 Flute

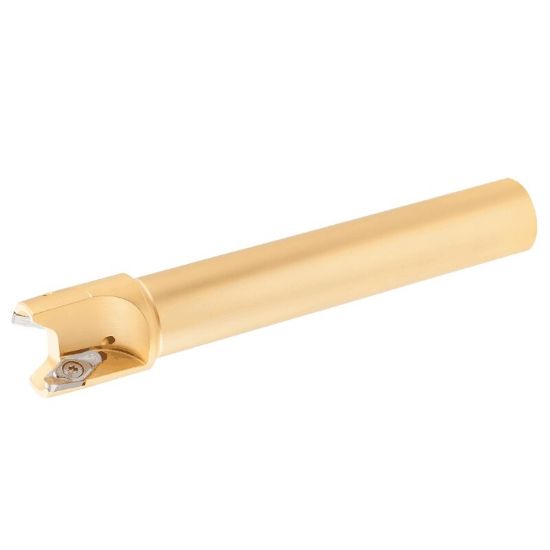

Picture of ISCAR HSM90S EAL-D125-2-C125-14 Milling Cutter 90.0° 1.250 Diameter Face Mill 1.250 8.000 OAL 2 Flute

ISCAR HSM90S EAL-D125-2-C125-14 Milling Cutter 90.0° 1.250 Diameter Face Mill 1.250 8.000 OAL 2 Flute

ANSI: HSM90S EAL-D125-2-C125-14

ISO: HSM90S EAL-D125-2-C125-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181228
Delivery date: 3-5 days
$670.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Shipping State Texas
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 14
Overall Len 8.0000 203.20MM
Depth Of Cut Max 0.5310
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 10.00°
Insert Style AL
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000216
