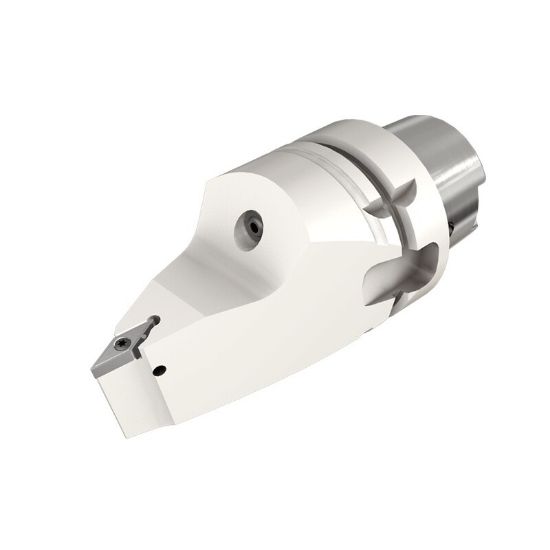

Picture of ISCAR HSK A63WH-SVVNN-J12F Turning Stick Tool 35.0° Insert 2.480 HSK

ISCAR HSK A63WH-SVVNN-J12F Turning Stick Tool 35.0° Insert 2.480 HSK

ANSI: HSK A63WH-SVVNN-J12F

ISO: HSK A63WH-SVVNN-J12F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602393
Delivery date: 3-5 days
$550.08

Important Notes

Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).

Details

Screw lock 72.5° lead angle tools with HSK exchangeable tapered shanks, carrying the 35° negative rhombic inserts. Designed for turn-mill machines.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Type Negative
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 2.4803 63.00MM
Overall Len 5.5910 142.01MM
Machine Side Connection Type HSK
Tool Material Steel
Lead Angle 72.5°
Insert Size Ic 12 "2.5"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
