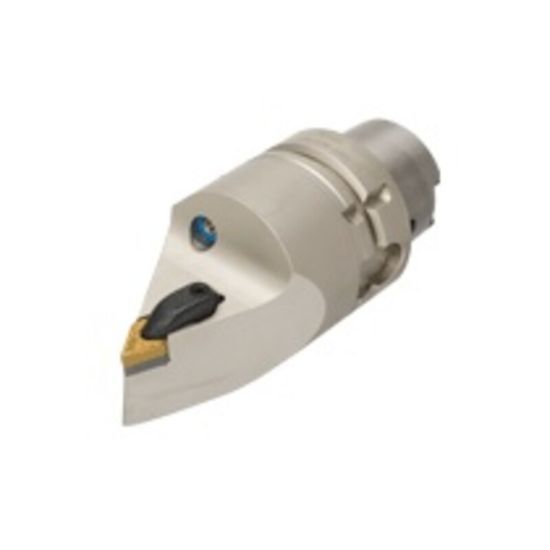

Picture of ISCAR HSK A63WH DDNNN J15 Turning Stick Tool 55.0° Insert 2.480 HSK

ISCAR HSK A63WH DDNNN J15 Turning Stick Tool 55.0° Insert 2.480 HSK

ANSI: HSK A63WH DDNNN J15

ISO: HSK A63WH DDNNN J15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602390
Delivery date: 3-5 days
$550.08

Important Notes

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).

Details

R-clamp, turning tools with HSK taper shank carrying the negative DNMG inserts. Comply with the ICTM standard.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 62.5°
Overall Len 5.5910 142.01MM
Insert Size Ic 12 "43"
Clearance Angle 60.0°
Machine Side Connection Size 2.4803 63.00MM
Machine Side Connection Type HSK
Tool Material Steel
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
