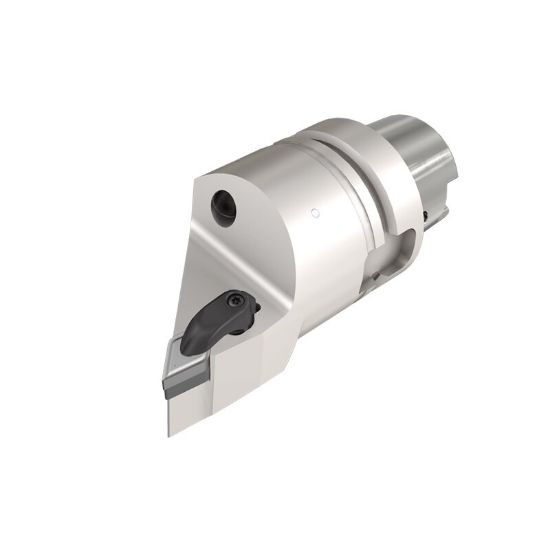

Picture of ISCAR HSK A63WH DDJNR J15 Turning Stick Tool 55.0° Insert 2.480 HSK

ISCAR HSK A63WH DDJNR J15 Turning Stick Tool 55.0° Insert 2.480 HSK

ANSI: HSK A63WH DDJNR J15

ISO: HSK A63WH DDJNR J15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602388
Delivery date: 3-5 days
$550.08

Important Notes

Complies with ICTM standard (ISO 12164-3). A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).

Details

R-clamp turning tools with HSK taper shank carrying negative DNMG inserts for 15° mounting on turn-mill machines (Complies with the ICTM standard).

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 5.5910 142.01MM
Insert Size Ic 12 "43"
Machine Side Connection Size 2.4803 63.00MM
Lead Angle 78°
Machine Side Connection Type HSK
Tool Material Steel
Cutting & Machining Properties
Insert Style DN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
