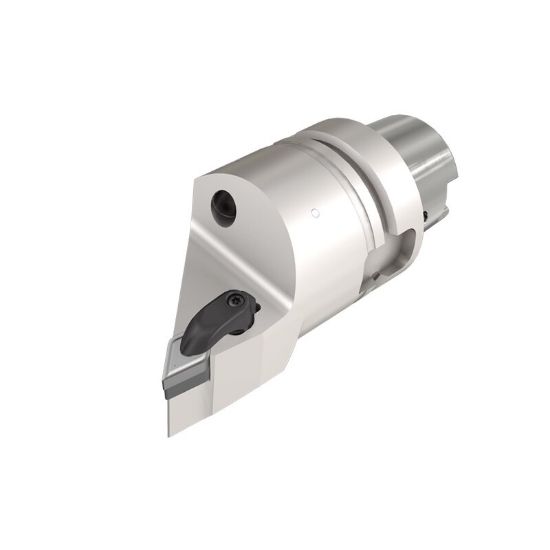

Picture of ISCAR HSK A63WH DDJNL J15 Turning Stick Tool 55.0° Insert 2.480 HSK

ISCAR HSK A63WH DDJNL J15 Turning Stick Tool 55.0° Insert 2.480 HSK

ANSI: HSK A63WH DDJNL J15

ISO: HSK A63WH DDJNL J15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602389
Delivery date: 3-5 days
$550.08

Important Notes

Complies with ICTM standard (ISO 12164-3). A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).

Details

R-clamp turning tools with HSK taper shank carrying negative DNMG inserts for 15° mounting on turn-mill machines (Complies with the ICTM standard).

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Overall Len 5.5910 142.01MM
Machine Side Connection Type HSK
Tool Material Steel
Insert Size Ic 12 "43"
Machine Side Connection Size 2.4803 63.00MM
Lead Angle 78°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Left
