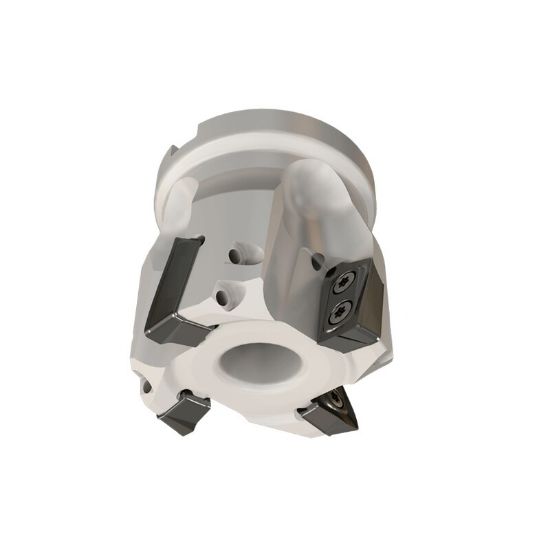

Picture of ISCAR HP F90AT D4.00-5-1.50-19 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 5 Flute

ISCAR HP F90AT D4.00-5-1.50-19 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 5 Flute

ANSI: HP F90AT D4.00-5-1.50-19

ISO: HP F90AT D4.00-5-1.50-19

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104330
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.7090
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 5
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 19
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 4.0000 101.60MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7003394
