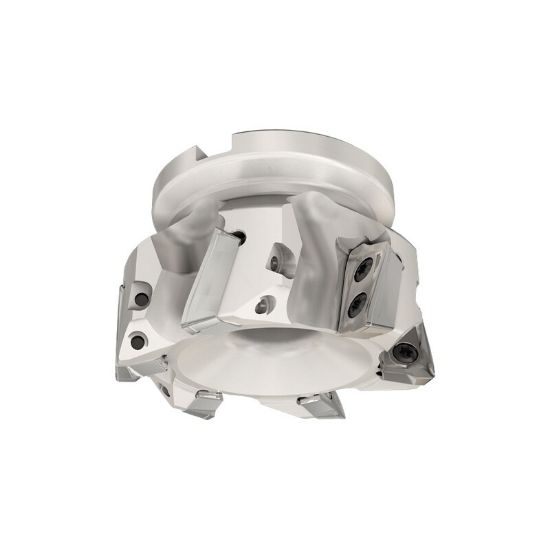

Picture of ISCAR HP F90AT D3.0-6-1.0-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 6 Flute

ISCAR HP F90AT D3.0-6-1.0-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 6 Flute

ANSI: HP F90AT D3.0-6-1.0-22

ISO: HP F90AT D3.0-6-1.0-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103494
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Insert Size Ic 22
Depth Of Cut Max 0.8270
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Cut Dia Max 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AD
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002791
