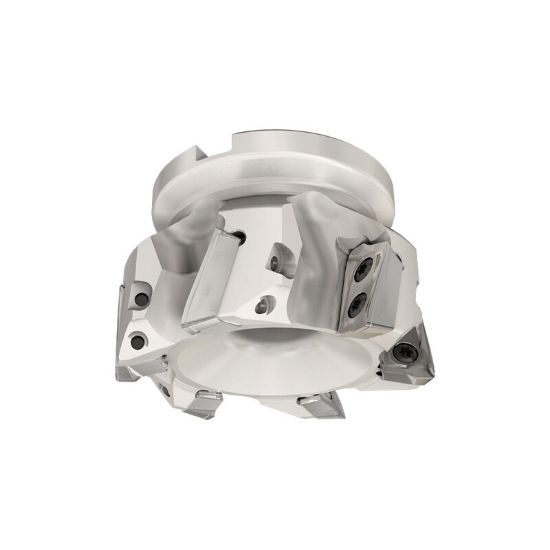

Picture of ISCAR HP F90AT D3.0-4-1.0-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 4 Flute

ISCAR HP F90AT D3.0-4-1.0-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 4 Flute

ANSI: HP F90AT D3.0-4-1.0-22

ISO: HP F90AT D3.0-4-1.0-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103113
Delivery date: 3-5 days
$853.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Insert Size Ic 22
Depth Of Cut Max 0.8270
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cut Dia Max 3.0000 76.20MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Style AD
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4304943
