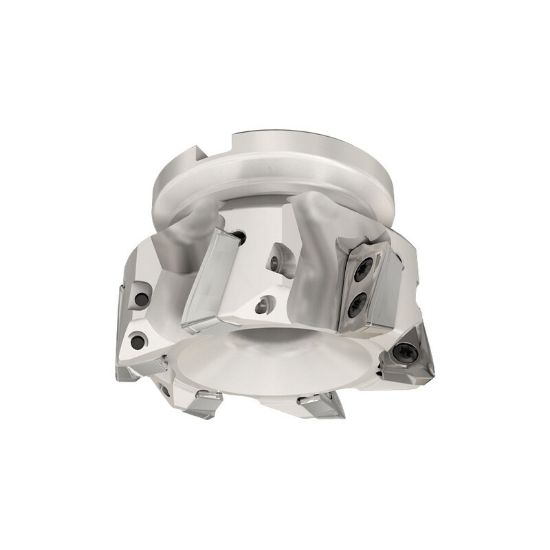

Picture of ISCAR HP F90AT D2.0-4-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

ISCAR HP F90AT D2.0-4-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

ANSI: HP F90AT D2.0-4-.75-22

ISO: HP F90AT D2.0-4-.75-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103492
Delivery date: 3-5 days
$522.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Insert Size Ic 22
Depth Of Cut Max 0.8270
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Style AD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000216
