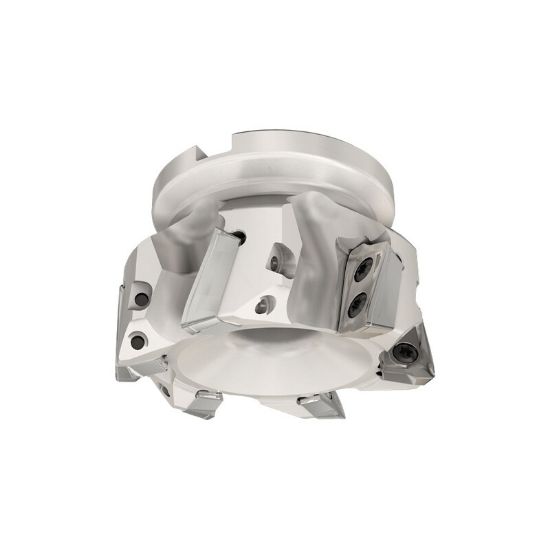

Picture of ISCAR HP F90AT D2.0-3-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 3 Flute

ISCAR HP F90AT D2.0-3-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 3 Flute

ANSI: HP F90AT D2.0-3-.75-22

ISO: HP F90AT D2.0-3-.75-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103111
Delivery date: 3-5 days
$527.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Insert Size Ic 22
Depth Of Cut Max 0.8270
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000216
