  • ISCAR HP F90AN D2.5-12-1.0-07 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 12 Flute

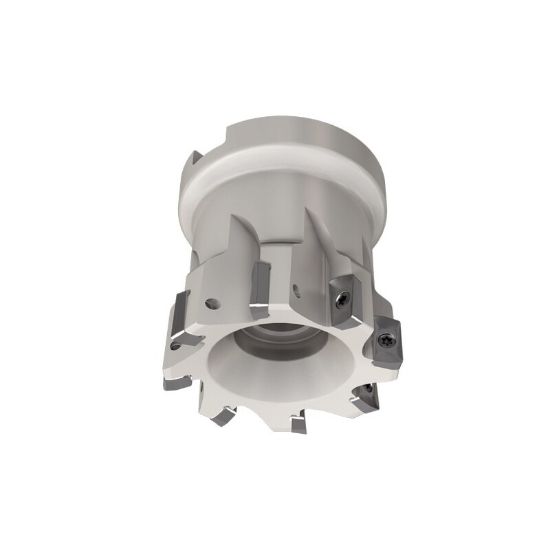

Picture of ISCAR HP F90AN D2.5-12-1.0-07 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 12 Flute

ISCAR HP F90AN D2.5-12-1.0-07 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 12 Flute

ANSI: HP F90AN D2.5-12-1.0-07

ISO: HP F90AN D2.5-12-1.0-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104164
Delivery date: 3-5 days
$880.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Depth Of Cut Max 0.3030
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Flutes/Inserts 12
Insert Size Ic 7
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AN
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002000
