  • ISCAR HP F90AN D2.0-12-.75-07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 12 Flute

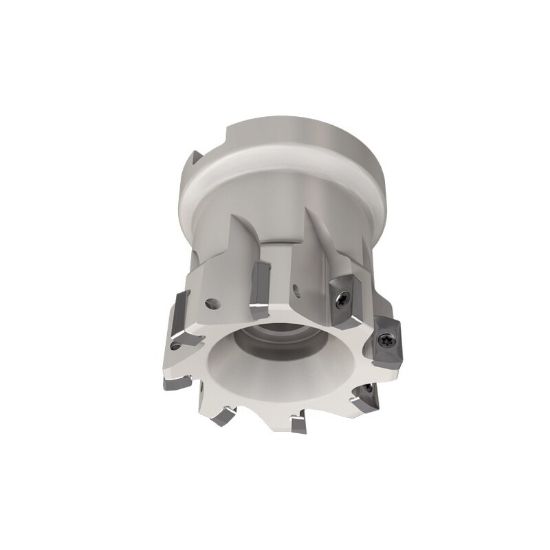

Picture of ISCAR HP F90AN D2.0-12-.75-07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 12 Flute

ISCAR HP F90AN D2.0-12-.75-07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 12 Flute

ANSI: HP F90AN D2.0-12-.75-07

ISO: HP F90AN D2.0-12-.75-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103821
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 12
Insert Size Ic 7
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.3030
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
