  • ISCAR HP F90AN D2.0-09-.75-07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 9 Flute

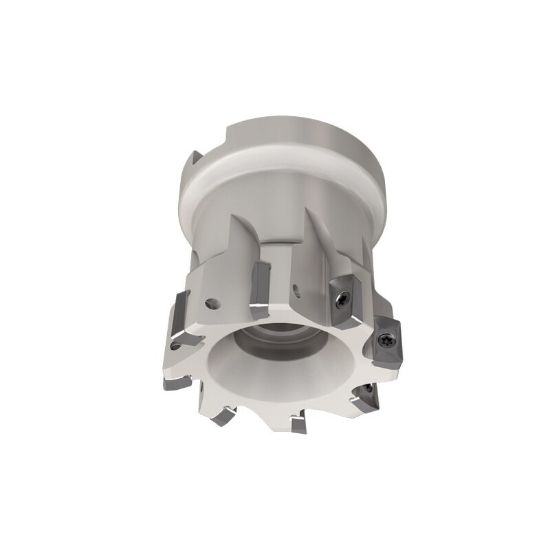

Picture of ISCAR HP F90AN D2.0-09-.75-07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 9 Flute

ISCAR HP F90AN D2.0-09-.75-07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 9 Flute

ANSI: HP F90AN D2.0-09-.75-07

ISO: HP F90AN D2.0-09-.75-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104163
Delivery date: 3-5 days
$740.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 7
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Flutes/Inserts 9
Depth Of Cut Max 0.3030
Tool Material Steel
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
