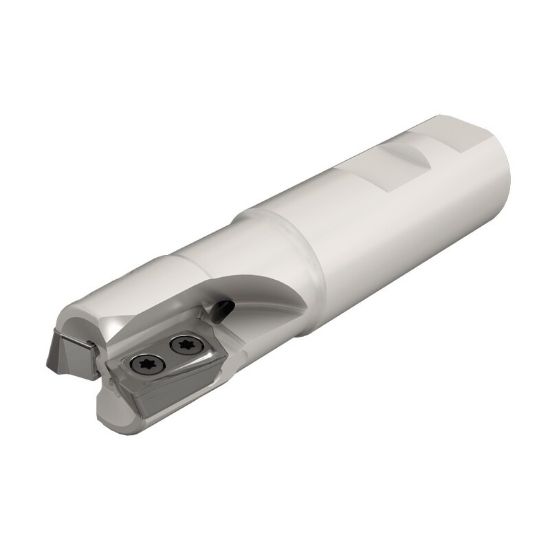

Picture of ISCAR HP E90AT-D1.25-2-W1.25-19 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.000 OAL 2 Flute

ISCAR HP E90AT-D1.25-2-W1.25-19 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.000 OAL 2 Flute

ANSI: HP E90AT-D1.25-2-W1.25-19

ISO: HP E90AT-D1.25-2-W1.25-19

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104313
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Side Milling, Ramp Milling, Slot Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 4.0000 101.60MM
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Insert Size Ic 19
Depth Of Cut Max 0.7090
Cutting & Machining Properties
Max Ramp Angle 7.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002511
