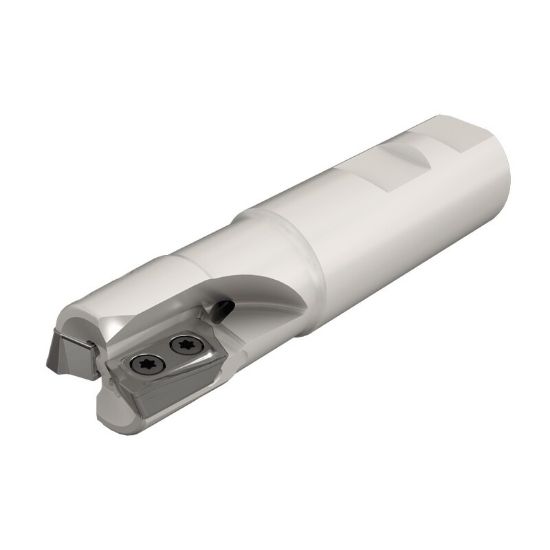

Picture of ISCAR HP E90AT-D1.00-2-W1.00-19 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

ISCAR HP E90AT-D1.00-2-W1.00-19 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

ANSI: HP E90AT-D1.00-2-W1.00-19

ISO: HP E90AT-D1.00-2-W1.00-19

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104312
Delivery date: 3-5 days
$365.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Overall Len 4.0000 101.60MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Insert Size Ic 19
Flutes/Inserts 2
Depth Of Cut Max 0.7090
Machine Side Connection Type Weldon
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AD
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 14.00°
Fasteners & Connectors
Insert Screw 7002511
