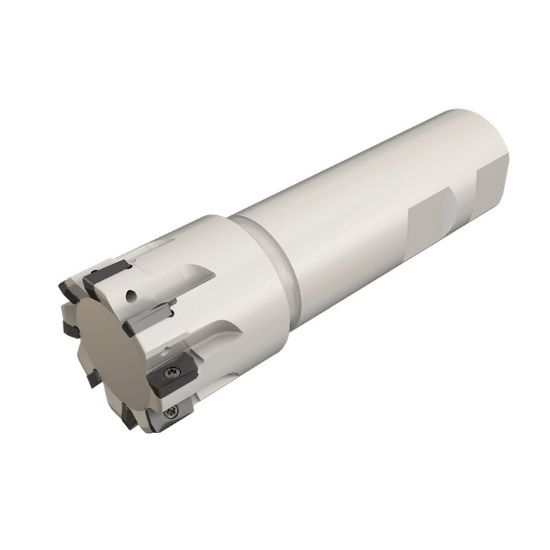

Picture of ISCAR HP E90AN-D.75-5-W.75-7 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 5 Flute

ISCAR HP E90AN-D.75-5-W.75-7 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 5 Flute

ANSI: HP E90AN-D.75-5-W.75-7

ISO: HP E90AN-D.75-5-W.75-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103899
Delivery date: 3-5 days
$393.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Weldon
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 3.5000 88.90MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Depth Of Cut Max 0.3030
Insert Size Ic 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Max Ramp Angle 2.40°
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
