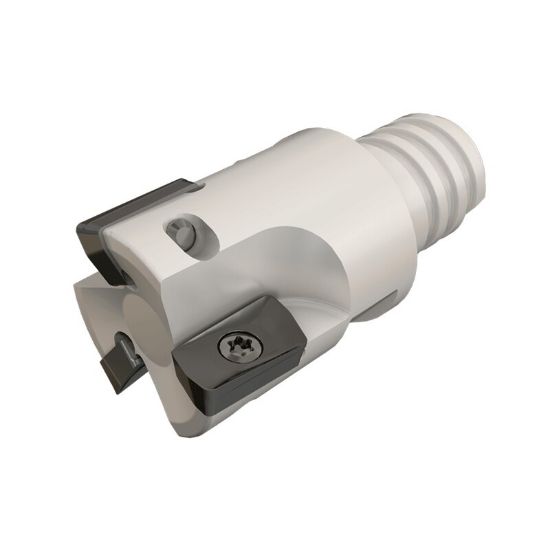

Picture of ISCAR HP E90AN-D.75-5-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.390 OAL 5 Flute

ISCAR HP E90AN-D.75-5-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.390 OAL 5 Flute

ANSI: HP E90AN-D.75-5-MMT12

ISO: HP E90AN-D.75-5-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104240
Delivery date: 3-5 days
$408.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Made In USA No
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Insert Size Ic 7
Machine Side Connection Type Screw On
Overall Len 1.3900 35.31MM
Cut Dia Max 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.3030
Cut Dia Min 0.7500 19.05MM - 3/4
Machine Side Connection Size T12
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Max Ramp Angle 2.40°
Fasteners & Connectors
Insert Screw 7002441
