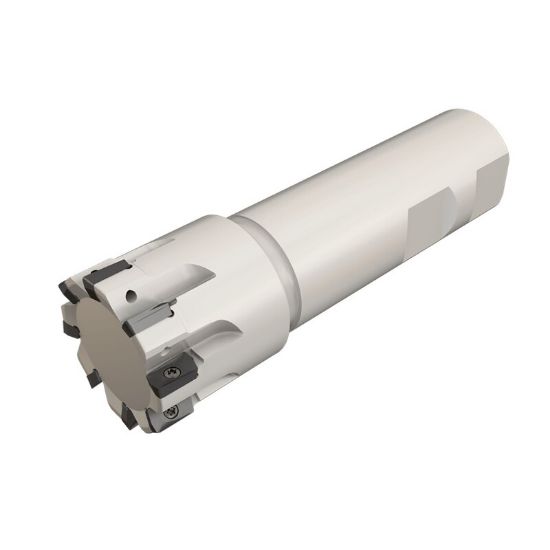

Picture of ISCAR HP E90AN-D.75-5-C.75-7C Milling Cutter 90.0° 0.750 Diameter Round 0.750 4.000 OAL 5 Flute

ISCAR HP E90AN-D.75-5-C.75-7C Milling Cutter 90.0° 0.750 Diameter Round 0.750 4.000 OAL 5 Flute

ANSI: HP E90AN-D.75-5-C.75-7C

ISO: HP E90AN-D.75-5-C.75-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103626
Delivery date: 3-5 days
$411.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Overall Len 4.0000 101.60MM
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.3030
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Max Ramp Angle 2.40°
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7003185
