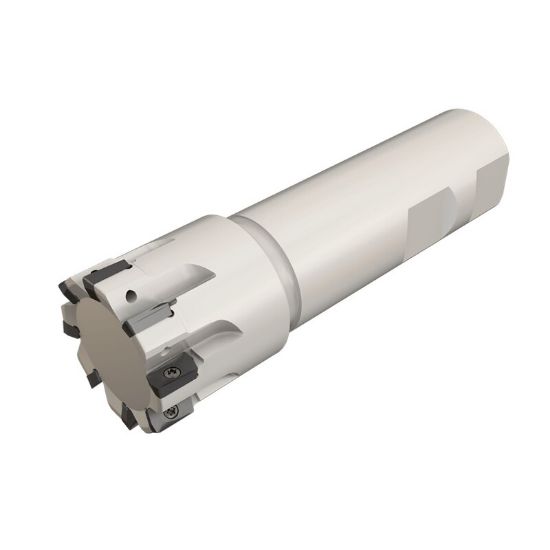

Picture of ISCAR HP E90AN-D.75-4-W.75-7 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

ISCAR HP E90AN-D.75-4-W.75-7 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

ANSI: HP E90AN-D.75-4-W.75-7

ISO: HP E90AN-D.75-4-W.75-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103898
Delivery date: 3-5 days
$371.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3030
Tool Material Steel
Insert Size Ic 7
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 3.5000 88.90MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style AN
Max Ramp Angle 2.40°
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7003603
