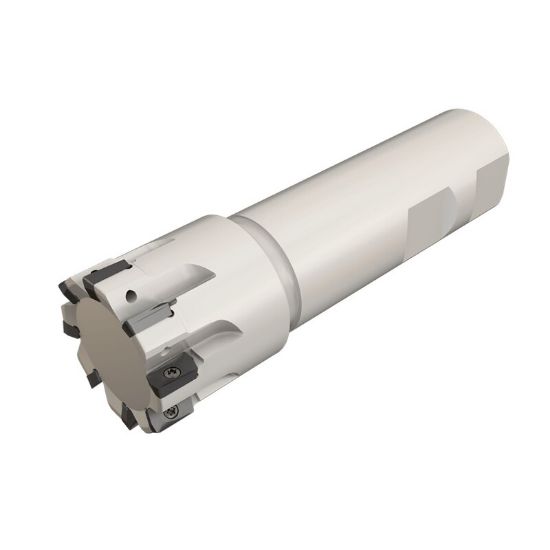

Picture of ISCAR HP E90AN-D.75-4-C.75-7C Milling Cutter 90.0° 0.750 Diameter Round 0.750 4.000 OAL 4 Flute

ISCAR HP E90AN-D.75-4-C.75-7C Milling Cutter 90.0° 0.750 Diameter Round 0.750 4.000 OAL 4 Flute

ANSI: HP E90AN-D.75-4-C.75-7C

ISO: HP E90AN-D.75-4-C.75-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103625
Delivery date: 3-5 days
$397.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Shipping State Texas
Insert Application Roughing, Semi Finishing
Made In USA No
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Flutes/Inserts 4
Overall Len 4.0000 101.60MM
Cut Dia Max 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3030
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Max Ramp Angle 2.40°
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7003603
