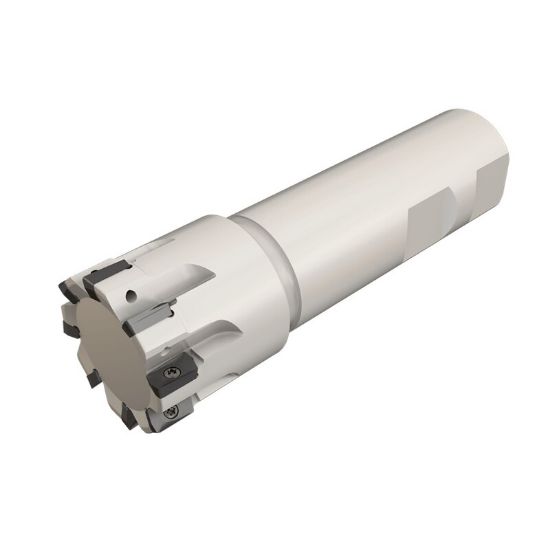

Picture of ISCAR HP E90AN-D.62-4-W.625-7 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.250 OAL 4 Flute

ISCAR HP E90AN-D.62-4-W.625-7 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.250 OAL 4 Flute

ANSI: HP E90AN-D.62-4-W.625-7

ISO: HP E90AN-D.62-4-W.625-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103897
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3030
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Overall Len 3.2500 82.55MM
Insert Size Ic 7
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Max Ramp Angle 3.20°
Fasteners & Connectors
Insert Screw 7003603
