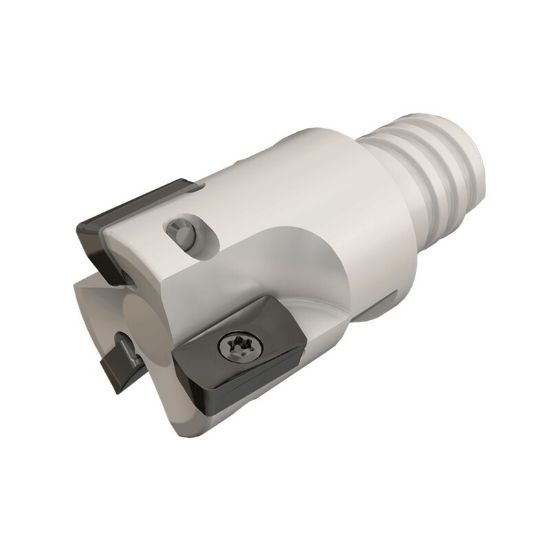

Picture of ISCAR HP E90AN-D.62-4-MMT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.210 OAL 4 Flute

ISCAR HP E90AN-D.62-4-MMT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.210 OAL 4 Flute

ANSI: HP E90AN-D.62-4-MMT10

ISO: HP E90AN-D.62-4-MMT10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104238
Delivery date: 3-5 days
$341.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 7
Machine Side Connection Size T10
Flutes/Inserts 4
Depth Of Cut Max 0.3030
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Overall Len 1.2100 30.73MM
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Max Ramp Angle 3.20°
Insert Style AN
Fasteners & Connectors
Insert Screw 7003603
