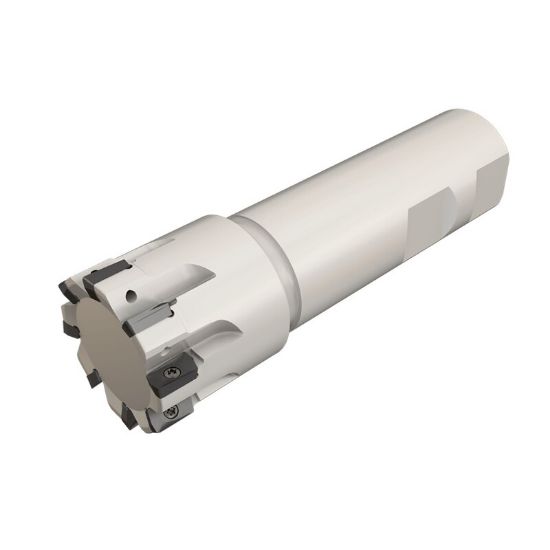

Picture of ISCAR HP E90AN-D.62-4-C.62-7C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 4 Flute

ISCAR HP E90AN-D.62-4-C.62-7C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 4 Flute

ANSI: HP E90AN-D.62-4-C.62-7C

ISO: HP E90AN-D.62-4-C.62-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103624
Delivery date: 3-5 days
$343.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Cut Dia Min 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.3030
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Flutes/Inserts 4
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Cool Sply Type Through Hole
Max Ramp Angle 3.20°
Fasteners & Connectors
Insert Screw 7003603
