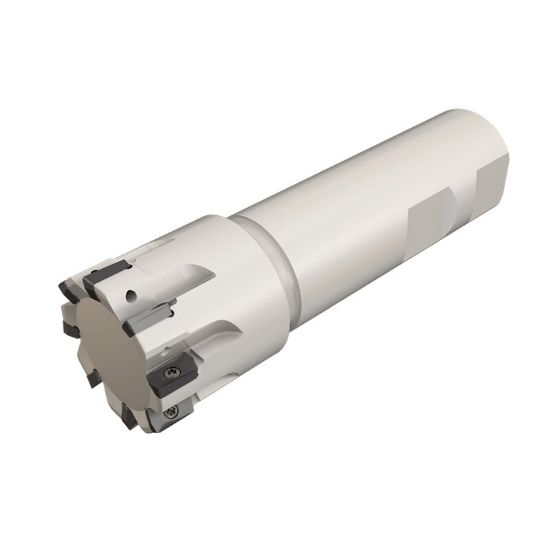

Picture of ISCAR HP E90AN-D.62-3-C.62-7C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 3 Flute

ISCAR HP E90AN-D.62-3-C.62-7C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 3 Flute

ANSI: HP E90AN-D.62-3-C.62-7C

ISO: HP E90AN-D.62-3-C.62-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181028
Delivery date: 3-5 days
$325.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 7
Cut Dia Min 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.3030
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Max Ramp Angle 3.20°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Fasteners & Connectors
Insert Screw 7000219
