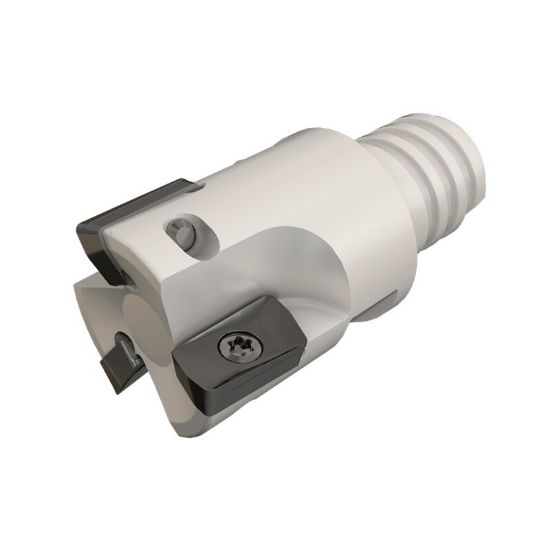

Picture of ISCAR HP E90AN-D.50-2-MMT08 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.960 OAL 2 Flute

ISCAR HP E90AN-D.50-2-MMT08 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.960 OAL 2 Flute

ANSI: HP E90AN-D.50-2-MMT08

ISO: HP E90AN-D.50-2-MMT08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103913
Delivery date: 3-5 days
$286.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Depth Of Cut Max 0.3030
Cutter Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Cut Dia Max 0.5000 12.70MM - 1/2
Overall Len 0.9600 24.38MM
Insert Size Ic 7
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Coolant Thru No
Max Ramp Angle 2.70°
Fasteners & Connectors
Insert Screw 7003603
