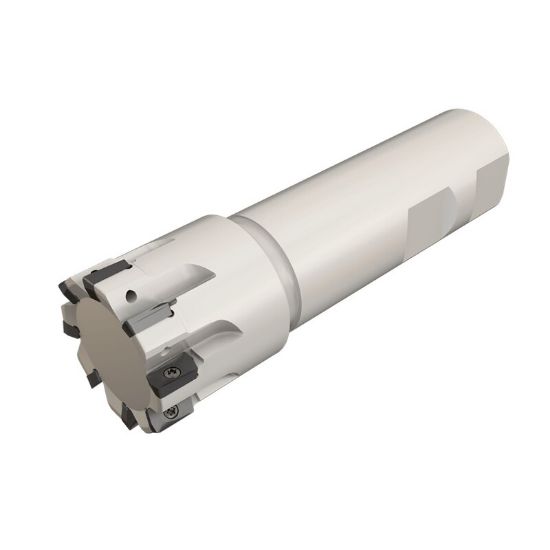

Picture of ISCAR HP E90AN-D.50-2-C.50-7C Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.270 OAL 2 Flute

ISCAR HP E90AN-D.50-2-C.50-7C Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.270 OAL 2 Flute

ANSI: HP E90AN-D.50-2-C.50-7C

ISO: HP E90AN-D.50-2-C.50-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103620
Delivery date: 3-5 days
$288.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Max 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.3030
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Overall Len 3.2700 83.06MM
Machine Side Connection Size 0.5000 12.70MM
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type Through Hole
Max Ramp Angle 2.70°
Fasteners & Connectors
Insert Screw 7003603
