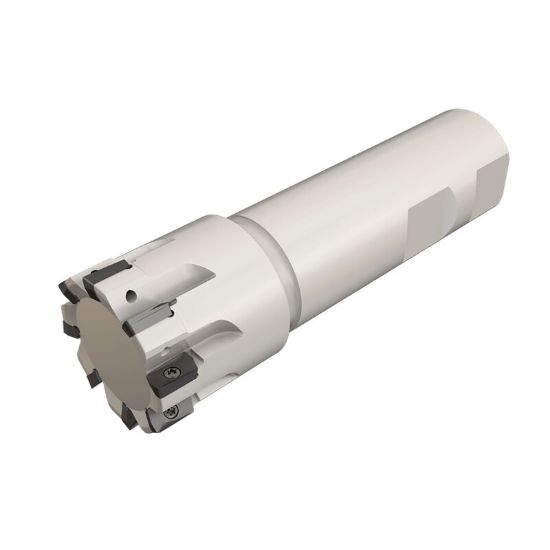

Picture of ISCAR HP E90AN-D.38-1-W.38-7 Milling Cutter 90.0° 0.375 Diameter Weldon 0.375 3.000 OAL 1 Flute

ISCAR HP E90AN-D.38-1-W.38-7 Milling Cutter 90.0° 0.375 Diameter Weldon 0.375 3.000 OAL 1 Flute

ANSI: HP E90AN-D.38-1-W.38-7

ISO: HP E90AN-D.38-1-W.38-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104173
Delivery date: 3-5 days
$263.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Shipping State Texas
Package Size 1
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 1
Cut Dia Max 0.3750 9.53MM - 3/8
Overall Len 3.0000 76.20MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3030
Tool Material Steel
Machine Side Connection Size 0.3750 9.53MM
Insert Size Ic 7
Cut Dia Min 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Inter/Extern External
Coolant Thru No
Max Ramp Angle 2.50°
Fasteners & Connectors
Insert Screw 7002399
