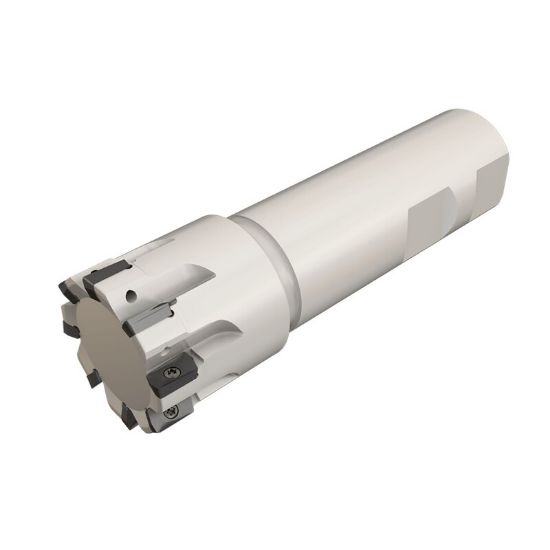

Picture of ISCAR HP E90AN-D.38-1-C.38-7C Milling Cutter 90.0° 0.375 Diameter Round 0.375 3.000 OAL 1 Flute

ISCAR HP E90AN-D.38-1-C.38-7C Milling Cutter 90.0° 0.375 Diameter Round 0.375 3.000 OAL 1 Flute

ANSI: HP E90AN-D.38-1-C.38-7C

ISO: HP E90AN-D.38-1-C.38-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103623
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.3030
Machine Side Connection Size 0.3750 9.53MM
Tool Material Steel
Insert Size Ic 7
Cut Dia Min 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Dia 0.3750 9.53MM - 3/8
Cut Dia Max 0.3750 9.53MM - 3/8
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 2.50°
Fasteners & Connectors
Insert Screw 7003603
