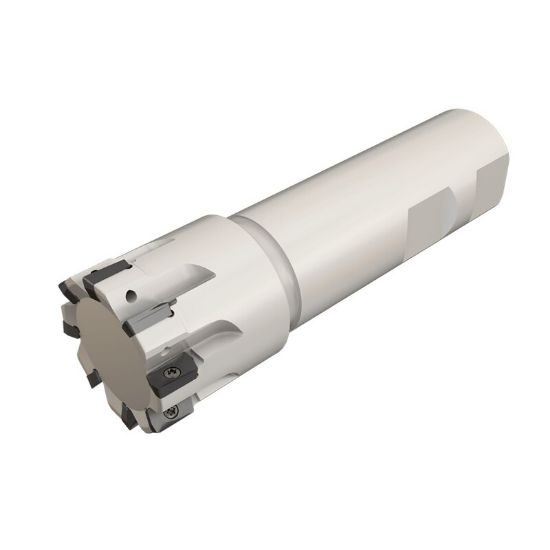

Picture of ISCAR HP E90AN-D1.5-10-C1.25-7C Milling Cutter 90.0° 1.500 Diameter Round 1.250 5.000 OAL 10 Flute

ISCAR HP E90AN-D1.5-10-C1.25-7C Milling Cutter 90.0° 1.500 Diameter Round 1.250 5.000 OAL 10 Flute

ANSI: HP E90AN-D1.5-10-C1.25-7C

ISO: HP E90AN-D1.5-10-C1.25-7C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103619
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Overall Len 5.0000 127.00MM
Flutes/Inserts 10
Insert Size Ic 7
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Cut Dia Min 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3030
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 1.00°
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7003603
