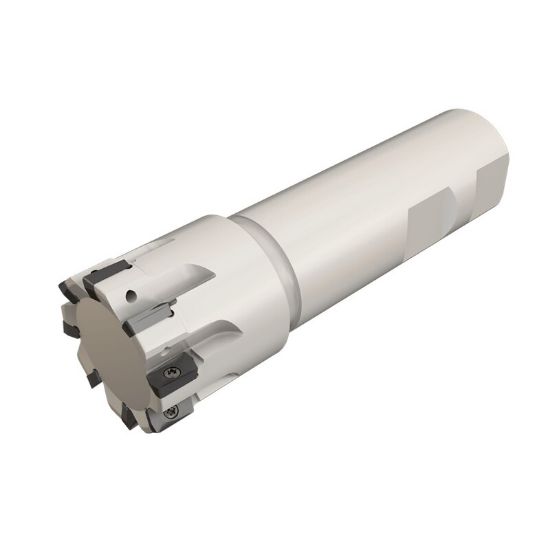

Picture of ISCAR HP E90AN-D1.25-8-W1.0-7 Milling Cutter 90.0° 1.250 Diameter Weldon 1.000 4.000 OAL 8 Flute

ISCAR HP E90AN-D1.25-8-W1.0-7 Milling Cutter 90.0° 1.250 Diameter Weldon 1.000 4.000 OAL 8 Flute

ANSI: HP E90AN-D1.25-8-W1.0-7

ISO: HP E90AN-D1.25-8-W1.0-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181193
Delivery date: 3-5 days
$451.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.3030
Insert Size Ic 7
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Flutes/Inserts 8
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Max Ramp Angle 1.40°
Fasteners & Connectors
Insert Screw 7002851
