  • ISCAR HP ANK D1.25-1.4-4W1.25-7 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.300 OAL 20 Flute

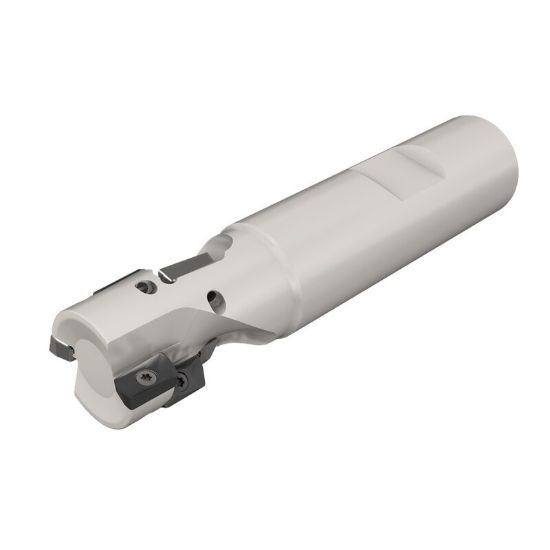

Picture of ISCAR HP ANK D1.25-1.4-4W1.25-7 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.300 OAL 20 Flute

ISCAR HP ANK D1.25-1.4-4W1.25-7 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.300 OAL 20 Flute

ANSI: HP ANK D1.25-1.4-4W1.25-7

ISO: HP ANK D1.25-1.4-4W1.25-7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103945
Delivery date: 3-5 days
$1,363.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Insert Type Positive
Dimensional Specifications
Cut Dia Min 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Weldon
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3030
Insert Size Ic 7
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.3000 109.22MM
Flutes/Inserts 20
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002000
