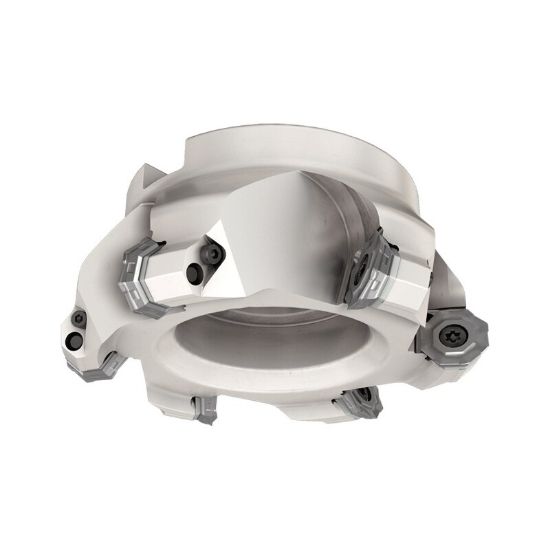

Picture of ISCAR HOF D8.0-12-2.50-R07 Milling Cutter 42.0° 8.000 Diameter Face Mill 2.500 2.020 OAL 12 Flute

ISCAR HOF D8.0-12-2.50-R07 Milling Cutter 42.0° 8.000 Diameter Face Mill 2.500 2.020 OAL 12 Flute

ANSI: HOF D8.0-12-2.50-R07

ISO: HOF D8.0-12-2.50-R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181092
Delivery date: 3-5 days
$1,776.00

Details

FACE MILL HOLDS ROUND, OCTAGONAL AND SQUARE IN SAME CUTTER. GREAT FOR JOB SHOP, VERY FREE CUTTING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Round Milling, Face Milling
Shipping State Texas
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 8.0000 203.20MM
Cutter Dia 8.0000 203.20MM
Overall Len 2.0200 51.31MM
Cut Dia Max 8.4900 215.65MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2760
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Cutting & Machining Properties
Seat/Nest 7002774
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Multi
Insert Style RE,OE,SE
Fasteners & Connectors
Seat Screw 7002796
Insert Screw 7000219
