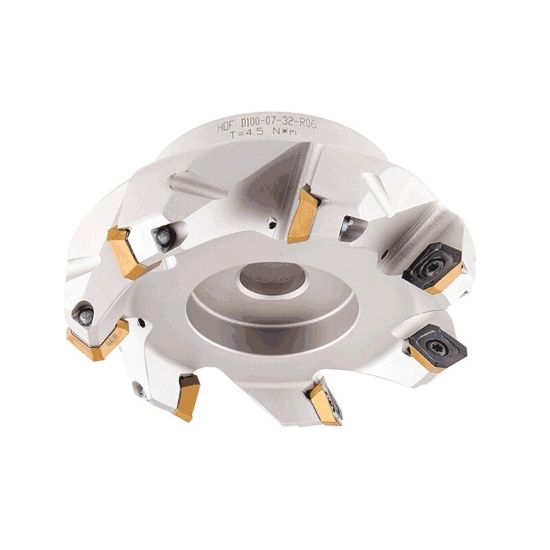

Picture of ISCAR HOF D5.00-08-1.50-R06 Milling Cutter 42.0° 5.000 Diameter Face Mill 1.500 2.020 OAL 8 Flute

ISCAR HOF D5.00-08-1.50-R06 Milling Cutter 42.0° 5.000 Diameter Face Mill 1.500 2.020 OAL 8 Flute

ANSI: HOF D5.00-08-1.50-R06

ISO: HOF D5.00-08-1.50-R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106598
Delivery date: 3-5 days
$1,027.20

Details

FACE MILL HOLDS ROUND, OCTAGONAL AND SQUARE IN SAME CUTTER. GREAT FOR JOB SHOP, VERY FREE CUTTING.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Round Milling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 5.0000 127.00MM
Flutes/Inserts 8
Tool Material Steel
Insert Size Ic 76
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2160
Cut Dia Max 5.3700 136.40MM
Overall Len 2.0200 51.31MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Multi
Insert Style RE,OE,SE
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
