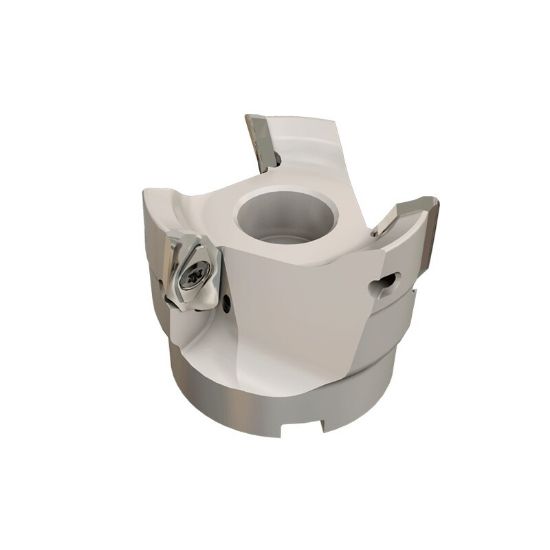

Picture of ISCAR HM90 FAL-D5.00-1.50-16 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.250 OAL 5 Flute

ISCAR HM90 FAL-D5.00-1.50-16 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.250 OAL 5 Flute

ANSI: HM90 FAL-D5.00-1.50-16

ISO: HM90 FAL-D5.00-1.50-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102773
Delivery date: 3-5 days
$1,152.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Cut Rating Aluminum, Graphite
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.2500 57.15MM
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cut Dia Min 5.0000 127.00MM
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002377
