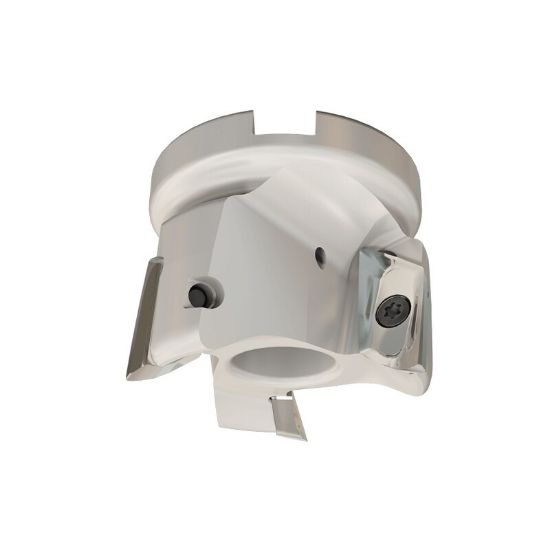

Picture of ISCAR HM90 FAL-D4.00-1.50-22 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 4 Flute

ISCAR HM90 FAL-D4.00-1.50-22 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 4 Flute

ANSI: HM90 FAL-D4.00-1.50-22

ISO: HM90 FAL-D4.00-1.50-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103549
Delivery date: 3-5 days
$958.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 4.0000 101.60MM
Insert Size Ic 22
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Depth Of Cut Max 0.8070
Cut Rating Aluminum, Graphite
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 4
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002791
