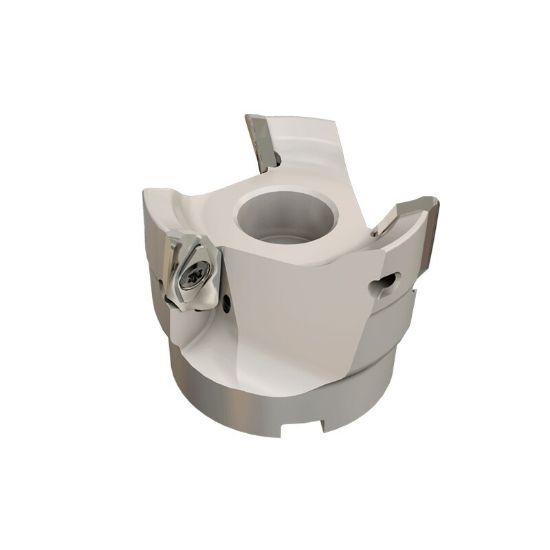

Picture of ISCAR HM90 FAL-D4.00-1.50-16 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.250 OAL 4 Flute

ISCAR HM90 FAL-D4.00-1.50-16 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.250 OAL 4 Flute

ANSI: HM90 FAL-D4.00-1.50-16

ISO: HM90 FAL-D4.00-1.50-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102772
Delivery date: 3-5 days
$958.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cut Rating Aluminum, Graphite
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.2500 57.15MM
Cut Dia Min 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002791
