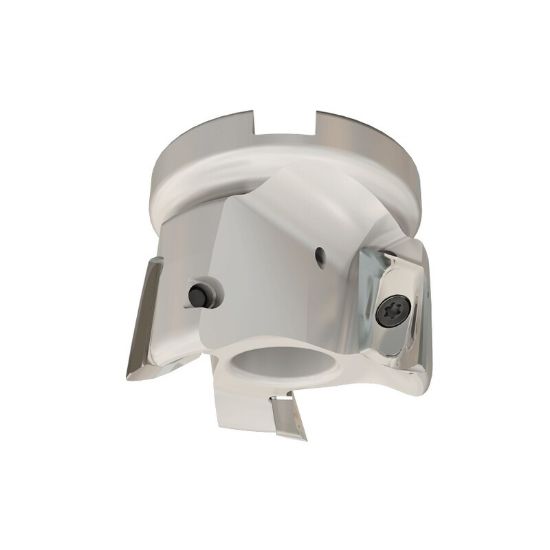

Picture of ISCAR HM90 FAL-D3.00-1.00-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ISCAR HM90 FAL-D3.00-1.00-22 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ANSI: HM90 FAL-D3.00-1.00-22

ISO: HM90 FAL-D3.00-1.00-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103548
Delivery date: 3-5 days
$842.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Application Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cut Dia Max 3.0000 76.20MM
Flutes/Inserts 3
Depth Of Cut Max 0.8070
Cut Rating Aluminum, Graphite
Cutter Dia 3.0000 76.20MM
Insert Size Ic 22
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002791
