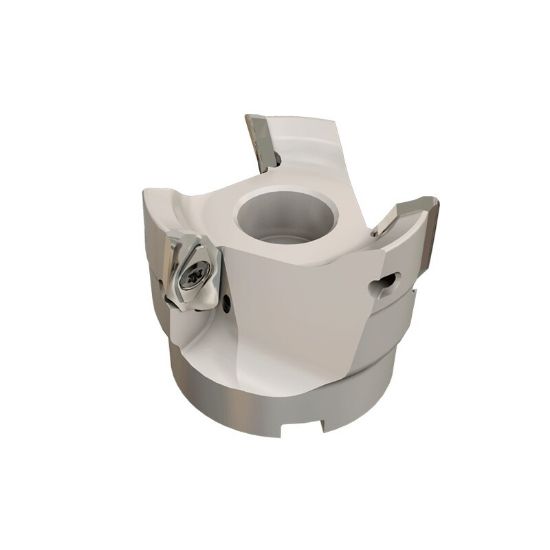

Picture of ISCAR HM90 FAL-D3.00-1.00-16 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ISCAR HM90 FAL-D3.00-1.00-16 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ANSI: HM90 FAL-D3.00-1.00-16

ISO: HM90 FAL-D3.00-1.00-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102771
Delivery date: 3-5 days
$791.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Depth Of Cut Max 0.6220
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cut Rating Aluminum, Graphite
Cut Dia Max 3.0000 76.20MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002791
