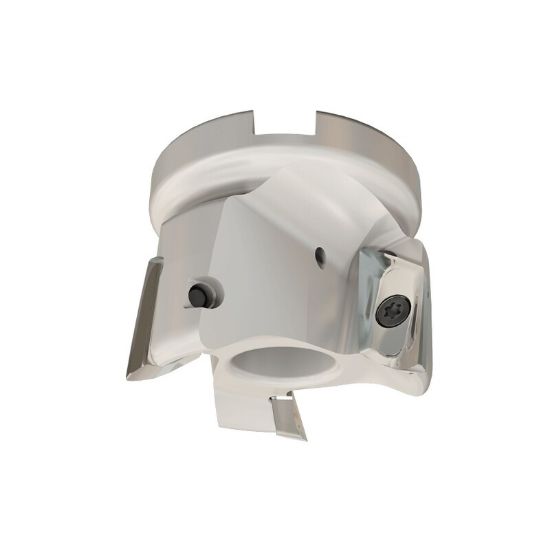

Picture of ISCAR HM90 FAL-D2.50-1.00-22 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ISCAR HM90 FAL-D2.50-1.00-22 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ANSI: HM90 FAL-D2.50-1.00-22

ISO: HM90 FAL-D2.50-1.00-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103547
Delivery date: 3-5 days
$707.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Pocket Milling, Side Milling, Ramp Milling, Slot Milling, Face Milling
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 22
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 3
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.8070
Cut Rating Aluminum, Graphite
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002791
