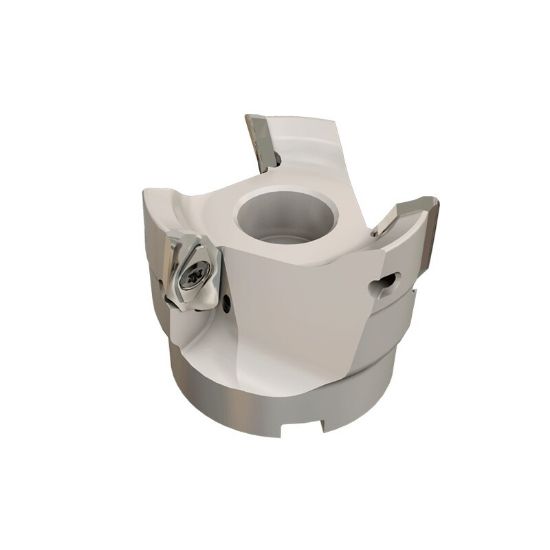

Picture of ISCAR HM90 FAL-D2.50-1.00-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ISCAR HM90 FAL-D2.50-1.00-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 2.000 OAL 3 Flute

ANSI: HM90 FAL-D2.50-1.00-16

ISO: HM90 FAL-D2.50-1.00-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102770
Delivery date: 3-5 days
$666.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Shipping State Texas
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 3
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Rating Aluminum, Graphite
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002791
