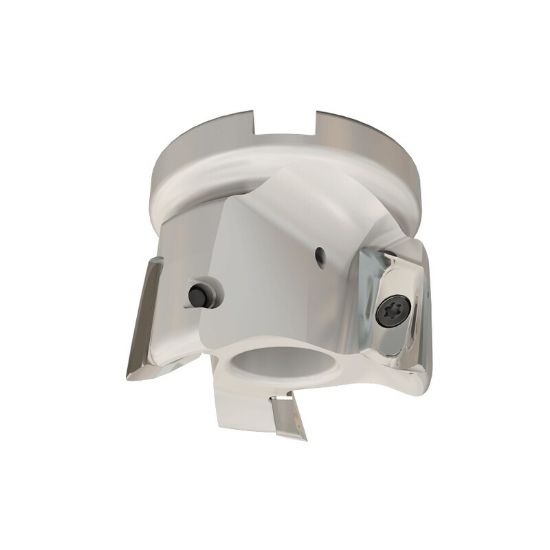

Picture of ISCAR HM90 FAL-D2.00- .75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 2 Flute

ISCAR HM90 FAL-D2.00- .75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.000 OAL 2 Flute

ANSI: HM90 FAL-D2.00- .75-22

ISO: HM90 FAL-D2.00- .75-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103546
Delivery date: 3-5 days
$597.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 2
Insert Size Ic 22
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.8070
Cut Rating Aluminum, Graphite
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002791
