  • ISCAR HM90 FAL-D2.00-.75-16BR Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 3 Flute

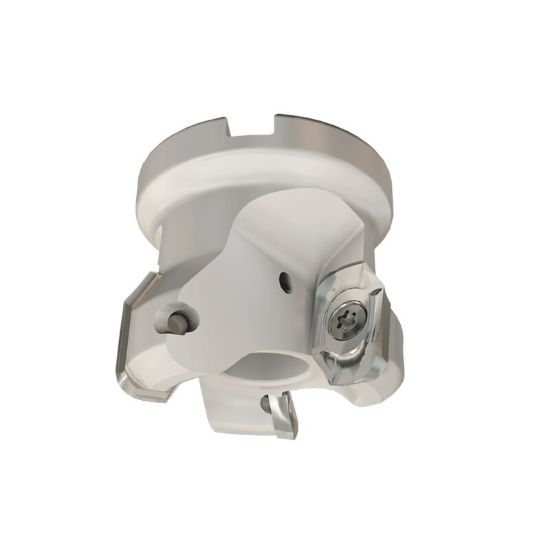

Picture of ISCAR HM90 FAL-D2.00-.75-16BR Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 3 Flute

ISCAR HM90 FAL-D2.00-.75-16BR Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 3 Flute

ANSI: HM90 FAL-D2.00-.75-16BR

ISO: HM90 FAL-D2.00-.75-16BR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3195282
Delivery date: 3-5 days
$630.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Overall Len 1.7500 44.45MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6100
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000229
