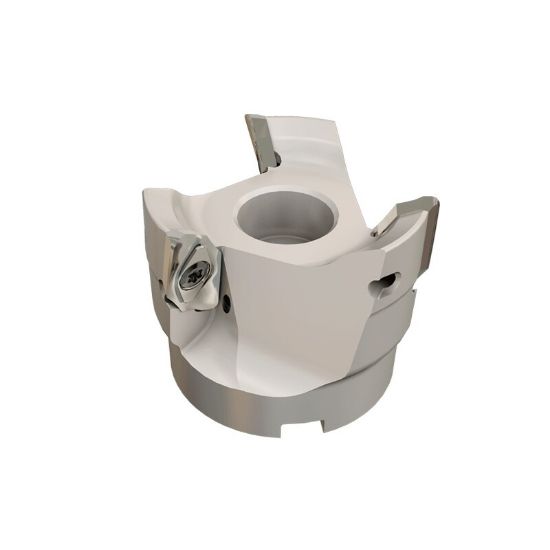

Picture of ISCAR HM90 FAL-D2.00-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 3 Flute

ISCAR HM90 FAL-D2.00-.75-16 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 3 Flute

ANSI: HM90 FAL-D2.00-.75-16

ISO: HM90 FAL-D2.00-.75-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102769
Delivery date: 3-5 days
$597.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Ramp Milling, Slot Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Tool Material Steel
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cutter Dia 2.0000 50.80MM
Cut Rating Aluminum, Graphite
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002791
