  • ISCAR HM90 FAL-D2.00-4-.75-15 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

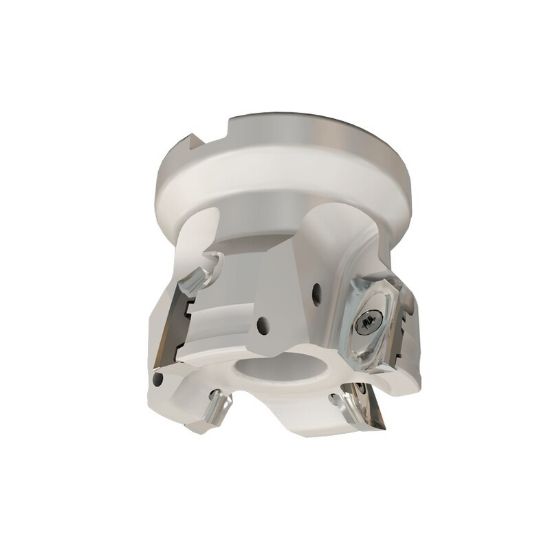

Picture of ISCAR HM90 FAL-D2.00-4-.75-15 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

ISCAR HM90 FAL-D2.00-4-.75-15 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

ANSI: HM90 FAL-D2.00-4-.75-15

ISO: HM90 FAL-D2.00-4-.75-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105021
Delivery date: 3-5 days
$651.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 1.7500 44.45MM
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 1.5510
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 4
Insert Size Ic 15
Cut Rating Aluminum, Gray Iron, High Temp
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7004610
