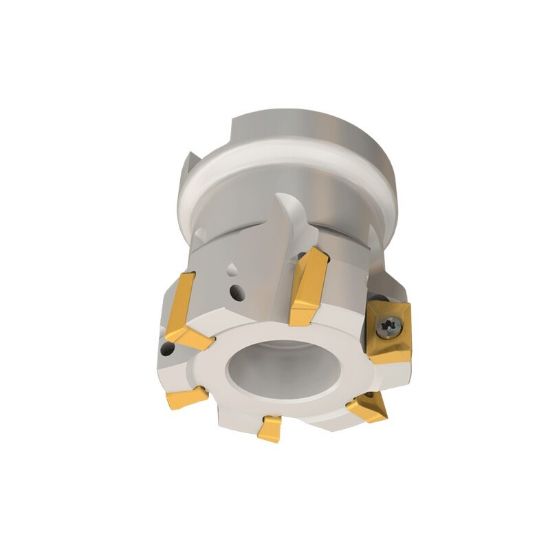

Picture of ISCAR HM90 F90AP D4.00-9-1.5 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ISCAR HM90 F90AP D4.00-9-1.5 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ANSI: HM90 F90AP D4.00-9-1.5

ISO: HM90 F90AP D4.00-9-1.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102081
Delivery date: 3-5 days
$952.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Insert Type Positive
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 10
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 9
Depth Of Cut Max 0.3900
Cut Dia Max 4.0000 101.60MM
Cutting & Machining Properties
Insert Style AP
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002441
