  • ISCAR HM90 F90AP D3.00-8-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 8 Flute

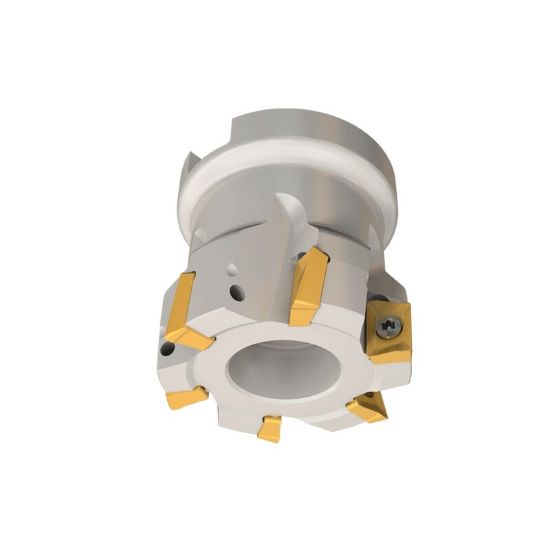

Picture of ISCAR HM90 F90AP D3.00-8-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 8 Flute

ISCAR HM90 F90AP D3.00-8-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 8 Flute

ANSI: HM90 F90AP D3.00-8-1.00

ISO: HM90 F90AP D3.00-8-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102080
Delivery date: 3-5 days
$811.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.7500 44.45MM
Flutes/Inserts 8
Insert Size Ic 10
Depth Of Cut Max 0.3900
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002441
