  • ISCAR HM90 F90AP D3.00-11-1.00* Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 11 Flute

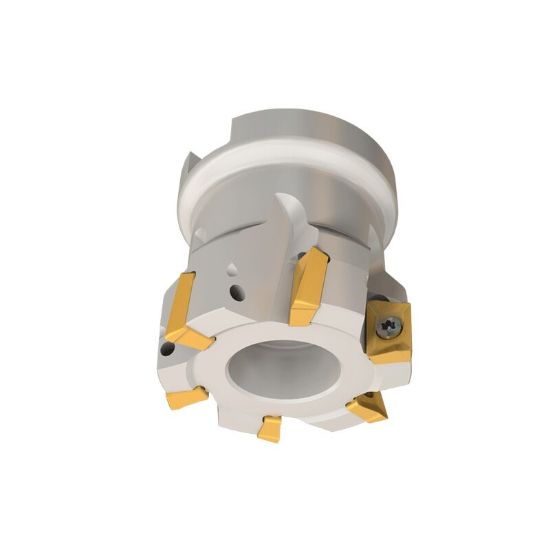

Picture of ISCAR HM90 F90AP D3.00-11-1.00* Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 11 Flute

ISCAR HM90 F90AP D3.00-11-1.00* Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 11 Flute

ANSI: HM90 F90AP D3.00-11-1.00*

ISO: HM90 F90AP D3.00-11-1.00*

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102087
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Flutes/Inserts 11
Insert Size Ic 10
Tool Material Steel
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.3900
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
