  • ISCAR HM90 F90AP D2.50-9-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

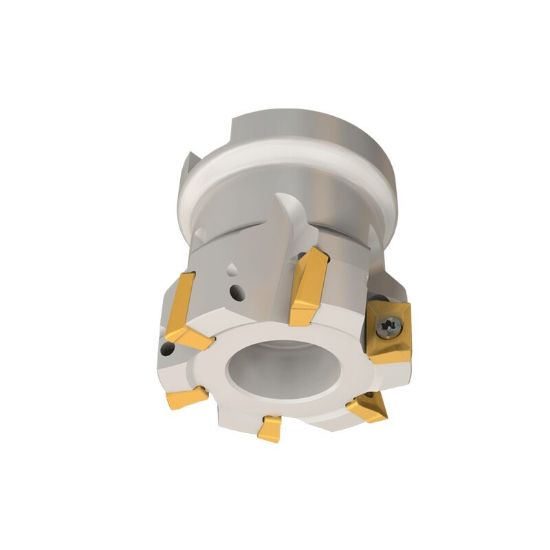

Picture of ISCAR HM90 F90AP D2.50-9-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ISCAR HM90 F90AP D2.50-9-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 9 Flute

ANSI: HM90 F90AP D2.50-9-1.00

ISO: HM90 F90AP D2.50-9-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102086
Delivery date: 3-5 days
$751.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 10
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.3900
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 9
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002441
