  • ISCAR HM90 F90AP D2.50-7-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

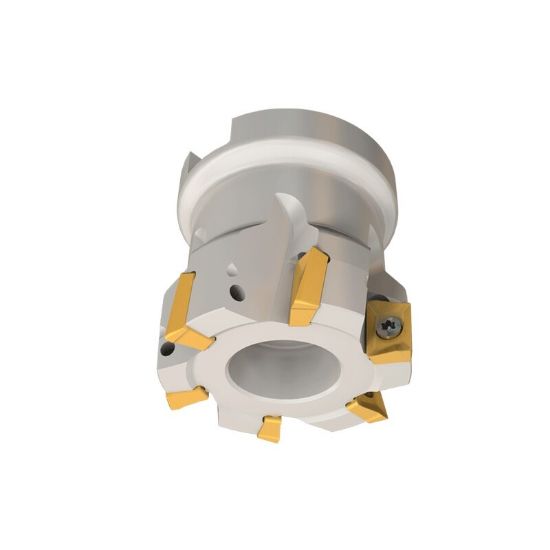

Picture of ISCAR HM90 F90AP D2.50-7-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ISCAR HM90 F90AP D2.50-7-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ANSI: HM90 F90AP D2.50-7-1.00

ISO: HM90 F90AP D2.50-7-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102079
Delivery date: 3-5 days
$706.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Overall Len 1.7500 44.45MM
Insert Size Ic 10
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 7
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Depth Of Cut Max 0.3900
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002441
